Description

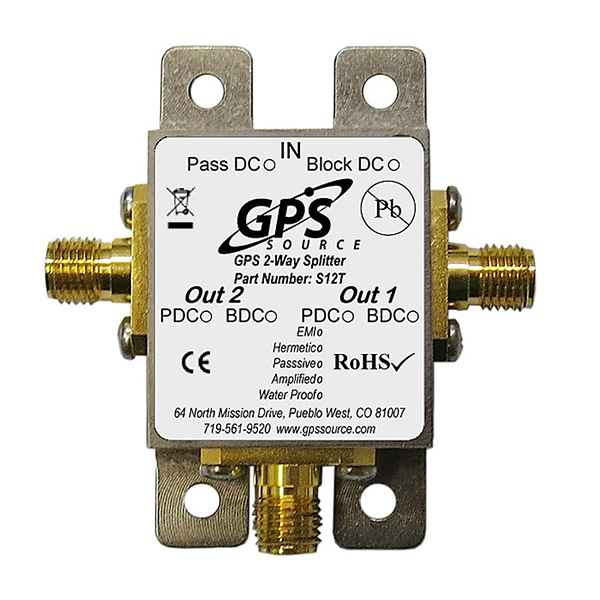

The S12 signal splitter tiny housing is a single unit RF device, splitting the single input signal into two outputs, for use in two different receivers. Specially designed for use when mounting space is very rare and very expensive, as big as 4 coins of €1. It handles all GPS, Galileo and GLONASS signals in one device. In case your current system of one receiver, powering the only active outdoor antenna, needs to be extended with a second receiver. The S12 signal splitter tiny housing can pass the DC current from an RF output (J1) to the active antenna connected on the input (ANT). While the second RF output (J2) is blocked for DC and feature a 200 Ω load to simulate an DC current draw from an active antenna.
